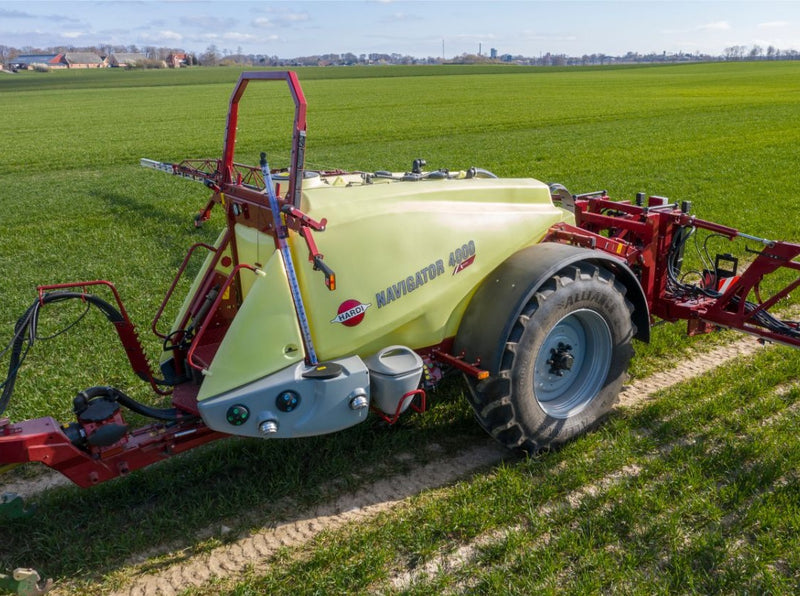

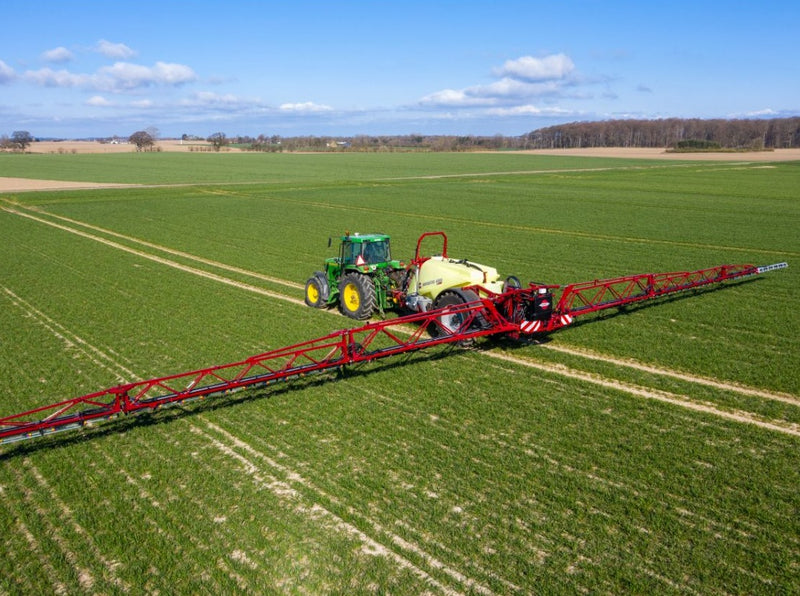

Hardi Navigator

Welcome the new generation of NAVIGATOR field sprayers.
To reduce the environmental impact as much as possible by increasing the application precision significantly and make the operation of the sprayer easier and safer for the driver, the NAVIGATOR “i” machines offers you the best intelligent spraying features: The automated cleaning system AutoWash – to make sure to leave no residues in the liquid system or main tank, automated spraying features like AutoNozzleControl to control each nozzle individually for higher precision and faster driving speeds, and the whole new HARDI SmartCom ECU for faster diagnostics – you are well prepared for the future.

Details

Tank, litres

3000

4000

5000

6000

Pumps, type – l/min

363-194 / 464-280 / 464H - 334

363-194 / 464-280 / 464H - 334

363-194 / 464-280 / 464H - 334

363-194 / 464-280 / 464H - 334

Booms, m

DELTA 18 - 24 m

DELTA 18 - 24 m

DELTA 24 m

DELTA 24 m

Booms, m

EAGLE 18 - 30 m

EAGLE 18 - 30 m

EAGLE 24 - 30 m

EAGLE 24 - 30 m

Booms, m

DELTA FORCE 24/27/28/33/36 m

DELTA FORCE 24 - 39 m

DELTA FORCE 24 - 39 m

RinseTank, l

500

500

500

500

Total height, m

3.80 (13.6x48)

3.80 (13.6x48)

3.80 (20.8x42)

3.80 (20.8x42)

Total length, m

7.2

7.2

8.00

8.00

Length draw to axel, m

4.80

5.30

6.05

6.05

Turning radius IntelliTrack, m

6.00

6.00

8.5

8.5

Track width, m

1.50 - 2.25

1.50 - 2.25

1.80 - 2.25

1.80 - 2.25

Width DELTA boom, m

2.55

2.55

2.55

Width DELTA FORCE, m

2.55

2.55

2.55

Width EAGLE, m

3.0

3.0

3.0

3.0

Width VPZ, m

2.30

2.30

Clearance, m

0.8 (340/85R48)

0.8 (340/85R48)

0.81 (520/85R42)

0.81 (520/85R42)

Weight total (empty tank), kg

3300 - 3600

3400 - 4700

4950 - 5850

5000 - 5900

Suspension

Optional

Optional

Optional

Optional
